    1. Stencil time! Alignment wasn't perfect, but it worked out ok
      oh my god twitter doesn’t include alt text from images in their APIoh my god twitter doesn’t include alt text from images in their APIoh my god twitter doesn’t include alt text from images in their API
      Permalink On twitter.com Twitter logo s0lll0s’s avatar ❤️ 4 Favorites Mood +3 🙂
  1. …in reply to @S0lll0s
    First couple components going on. The 0603 passives are ok, but I really bave to change the SOD-323 diodes for something else. The pads are so tiny and they really like to fall over, cert annoying to deal with
    oh my god twitter doesn’t include alt text from images in their API
    On twitter.com Twitter logo s0lll0s’s avatar ❤️ 2 Favorites Mood 0
    1. …in reply to @S0lll0s
      Paste on the second side came out perfect ✨
      oh my god twitter doesn’t include alt text from images in their APIoh my god twitter doesn’t include alt text from images in their APIoh my god twitter doesn’t include alt text from images in their API
      Permalink On twitter.com Twitter logo s0lll0s’s avatar ❤️ 1 Favorite Mood +4 🙂
      1. …in reply to @S0lll0s
        These 1.5x1.5mm RGB LEDs are actually one of the easiest components to place and solder (once you figure out which way they should go on)
        Permalink On twitter.com Twitter logo s0lll0s’s avatar ❤️ 3 Favorites Mood 0
        1. …in reply to @S0lll0s
          @robin7331 the SMD mags work great for this, no jiggle etc when advancing once the cover tape is long enough to pull on. Before this I tried sticking the tape down on the table, but even then the components would jump out / flip so this is a real win :)
          Permalink On twitter.com Twitter logo s0lll0s’s avatar ❤️ 1 Favorite Mood +6 🙂
        2. …in reply to @S0lll0s
          Permalink On twitter.com Twitter logo s0lll0s’s avatar ❤️ 1 Favorite Mood 0
          1. …in reply to @S0lll0s

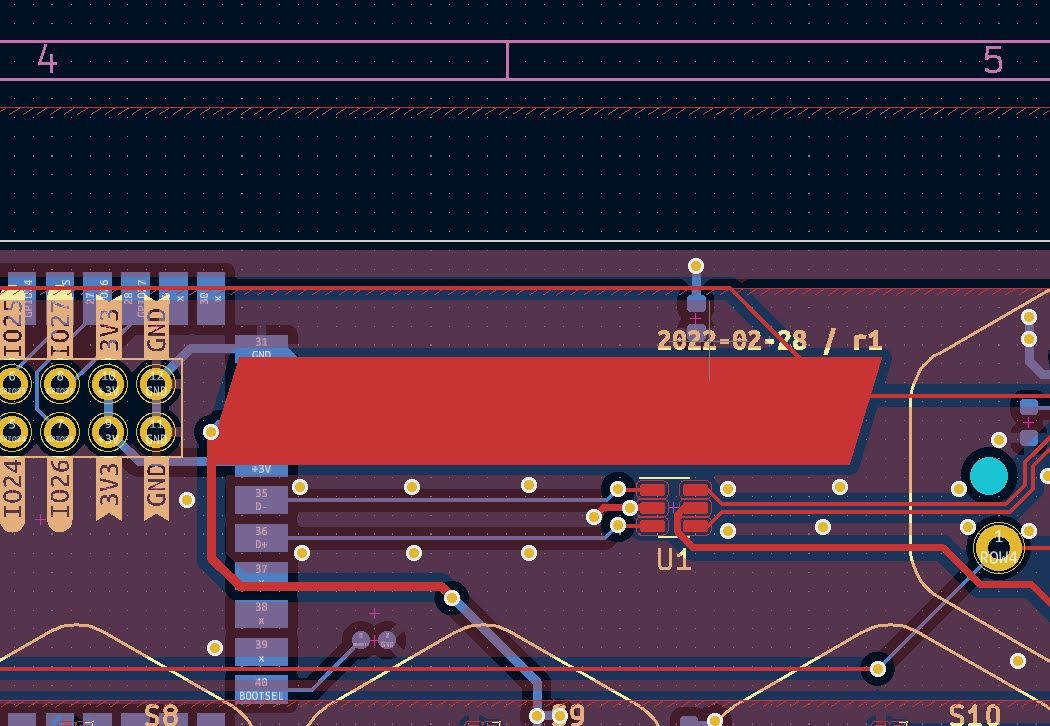

            oops 😬 Not sure why KiCad DRC didn't catch this?
            oh my god twitter doesn’t include alt text from images in their APIoh my god twitter doesn’t include alt text from images in their API
            Permalink On twitter.com Twitter logo s0lll0s’s avatar ❤️ 3 Favorites Mood -2 🙁
            1. …in reply to @S0lll0s
              Seems like that was the only big mistake though... All LEDs working first try :)
