      1. …in reply to @mmalex
        @mmalex @GregDavill I'm a real electronics noob and I did it on my 2nd ever PCB: s-ol.nu/btrktrl It's very doable :)
        Permalink On twitter.com Twitter logo s0lll0s’s avatar ❤️ 2 Favorites Mood -2 🙁
    1. …in reply to @S0lll0s
      @mmalex @GregDavill started from an UPDuino v2 devboard, so along the ICE40 technical documentation this was my main resource: github.com/gtjennings1/UPDuino_v2_0/blob/master/PCB/UPDuino_v2_0_C_121217.pdf
      Permalink On twitter.com Twitter logo s0lll0s’s avatar ❤️ 1 Favorite Mood 0
  1. …in reply to @S0lll0s

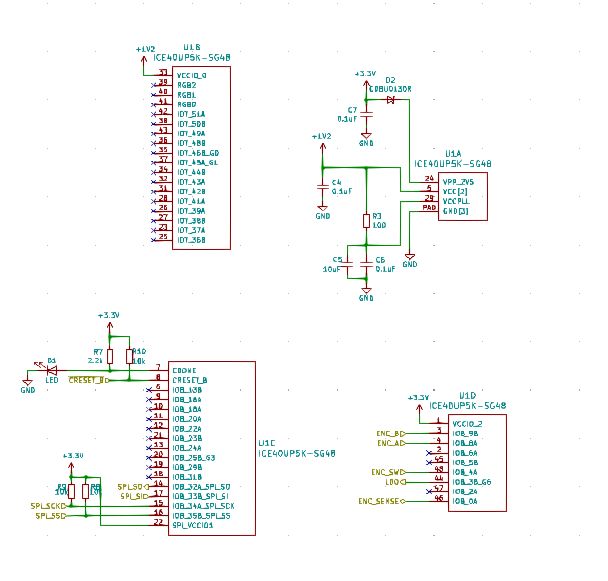

    @mmalex @GregDavill this is all the FPGA-supporting stuff (really just the upper-right part plus the two pullups lower-left)... apart from this you just need a 1V2 regulator. To configure it, either a MCU or SPI flash, plus some way to program those. Mine are daughterboards so there's neither
    oh my god twitter doesn’t include alt text from images in their API
