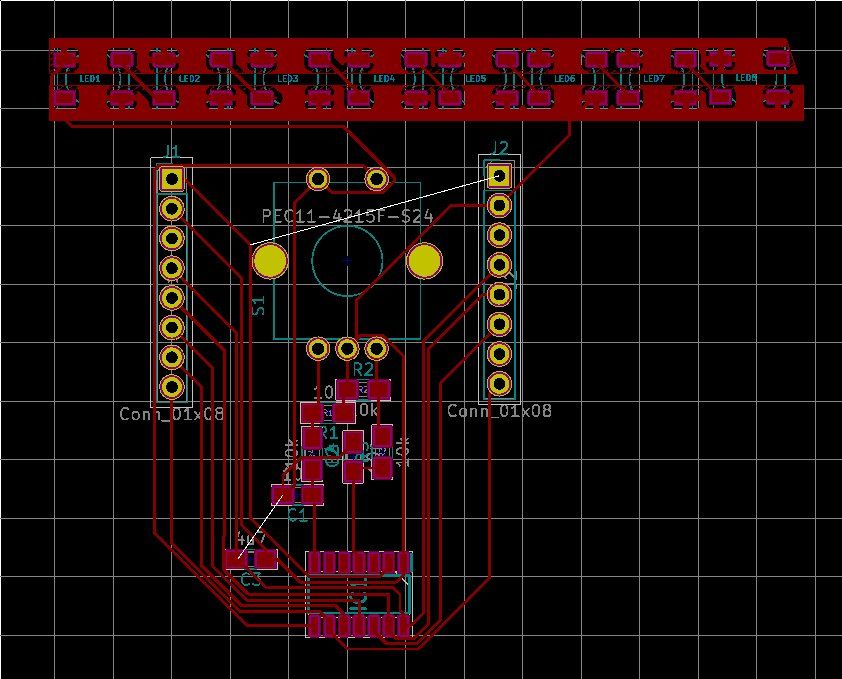

  1. tfw you finished routing everything on your first PCB and its, like, all single layer and done and spidery and everything.... and then you realize two of those no-connects on the very inside actually still need to go to the very outside of the board. #WillIEverFabThis
    oh my god twitter doesn’t include alt text from images in their API
    On twitter.com Twitter logo s0lll0s’s avatar ❤️ 1 Favorite Mood +2 🙂
    1. …in reply to @S0lll0s

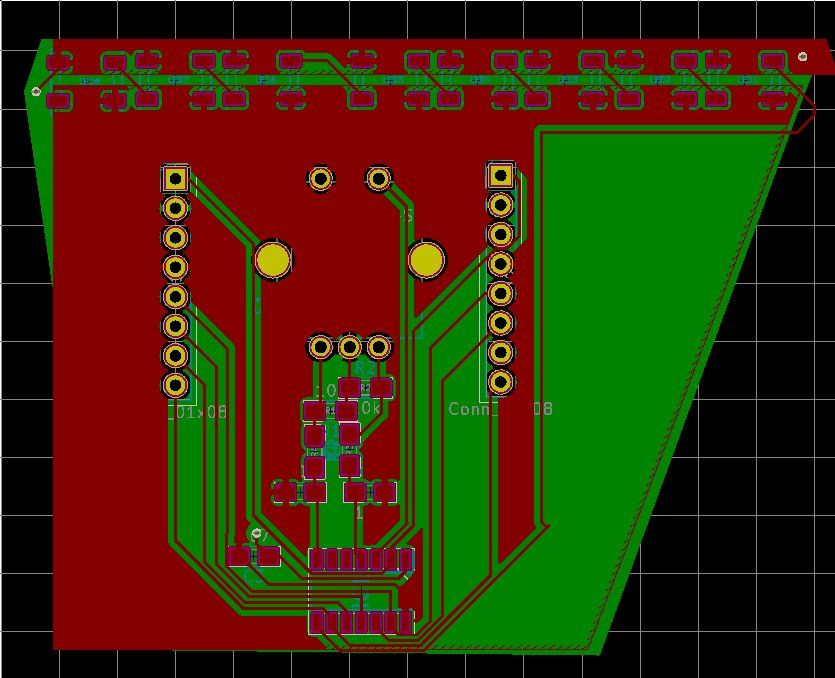

      ...and then you remember what you learned in "getting to blinky" and as soon as you have the VCC/GND-plane sandwich everything becomes so easy:
      oh my god twitter doesn’t include alt text from images in their API
      Permalink On twitter.com Twitter logo s0lll0s’s avatar Mood +1 🙂
      1. …in reply to @S0lll0s
        now if i had put in the effort to find out how to position the LEDs before i did all this 🤔
        Permalink On twitter.com Twitter logo s0lll0s’s avatar Mood 0
        1. …in reply to @S0lll0s
          seems like arranging them in an arc will require using the python scripting interface, which kicad-git in the AUR has compiled out (kicad-scripting-git has it)... HERE I GO COMPILING AGAINNNN
